MORTISE LOCK

Technical Specification

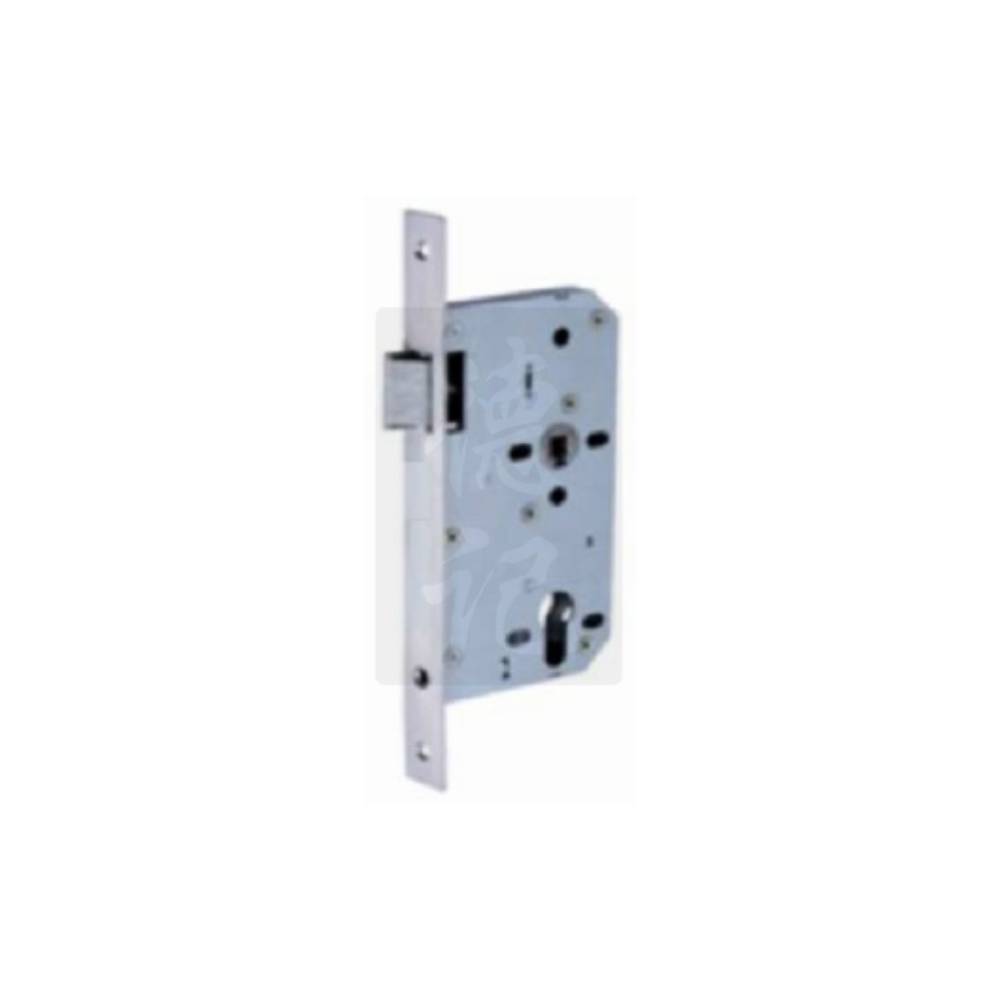

Model	A72-0706NL Nightlatch c/w Strike & Box
Application	Suitable for Timber & Metal Doors installation
Operation	The latch bolt is withdrawn by lever handle from either side Self locking when door is close and unlocked by Thumbturn inside and key outside cylinder. Key from either side using double cylinder
Case	Enclosed lock case with Sliver Painted
Latch	Stainless Steel Reversible Latch. Lever action latchbolt. Anti Friction Latch as optional
Follower	8mm, follower to suit 8mm spindle. 72mm centre as standard 85mm available to order
Backset	60mm as standard. 70mm, 80mm and 100mm upon request
Forend	Satin Stainless Steel finish with square end, 24mm wide. Other finishes available to order
Cylinder	For use with standard Euro Profile Cylinder
Material	Stainless Steel for Forend & Strike Plate
Finishes	Satin Stainless Steel
Quality Standard	Compliance to EN12209 : 2016 Compliance to SS332: 2018
