MORTISE LOCK

Technical Specification

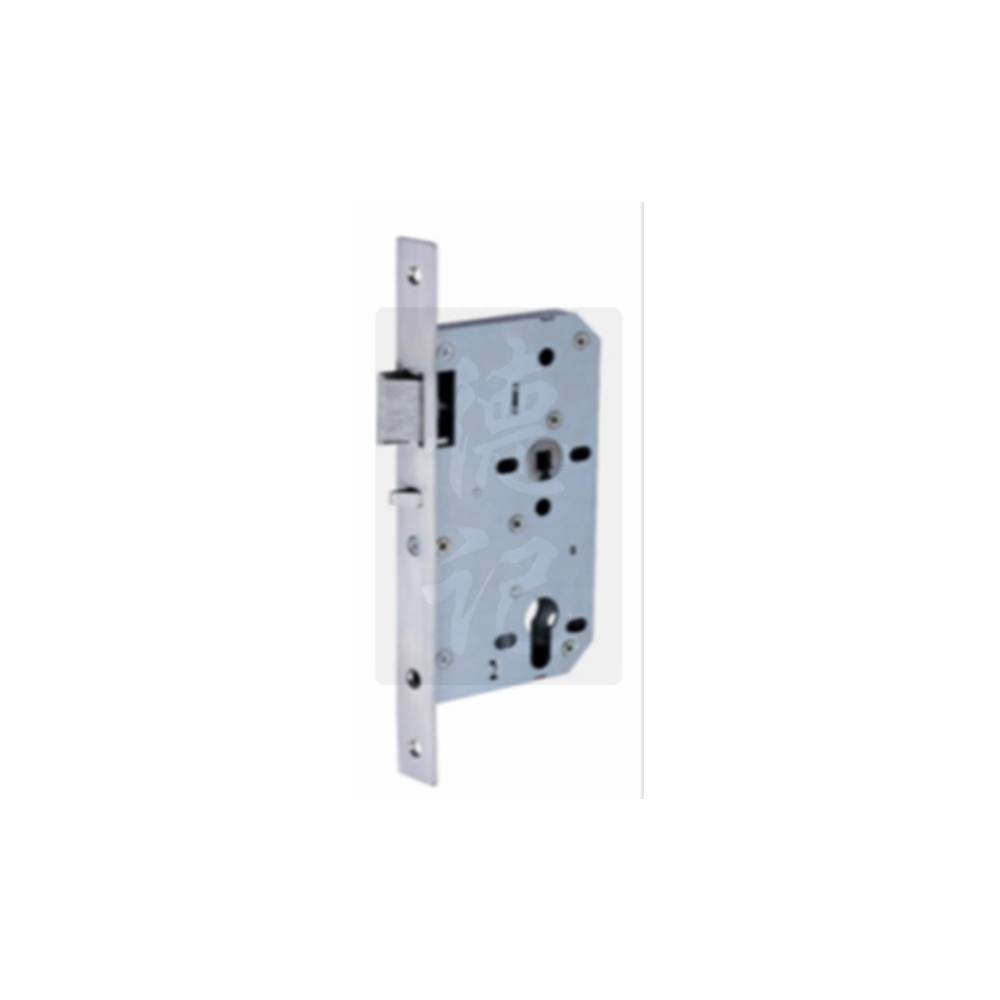

Mortise Passage Case with Anti-Thrust Function
Model	A72-0706P.AT Passage Lock (Anti Thrust) c/w Strike & Box
Application	Suitable for Timber & Metal Doors installation
Operation	Anti-Thrust latch: Prevent the latch bolt from retract when the door is closed. Antitrust bolt moves into the lock case simultaneously with latch bolt. The latch bolt is withdrawn by lever handle from either side
Case	Enclosed lock case with Sliver Painted
Latch	Stainless Steel Reversible Latch. Lever action latchbolt. Anti Friction Latch as optional
Anti-thrust bolt	Prevent the latchbolt from retract when the door is locked. Antitrust bolt moves into the lockcase simultaneously with latch bolt when in closed position
Follower	8mm, follower to suit 8mm spindle. 72mm centre as standard. 85mm available to order
Forend	Satin Stainless Steel finish with square end, 24mm wide. Other finishes available to order
Backset	60mm as standard. 70mm, 80mm available to order
Cylinder	For use with standard Euro Profile Cylinder
Material	Stainless Steel for Forend & Strike Plate
Finishes	Satin Stainless Steel
