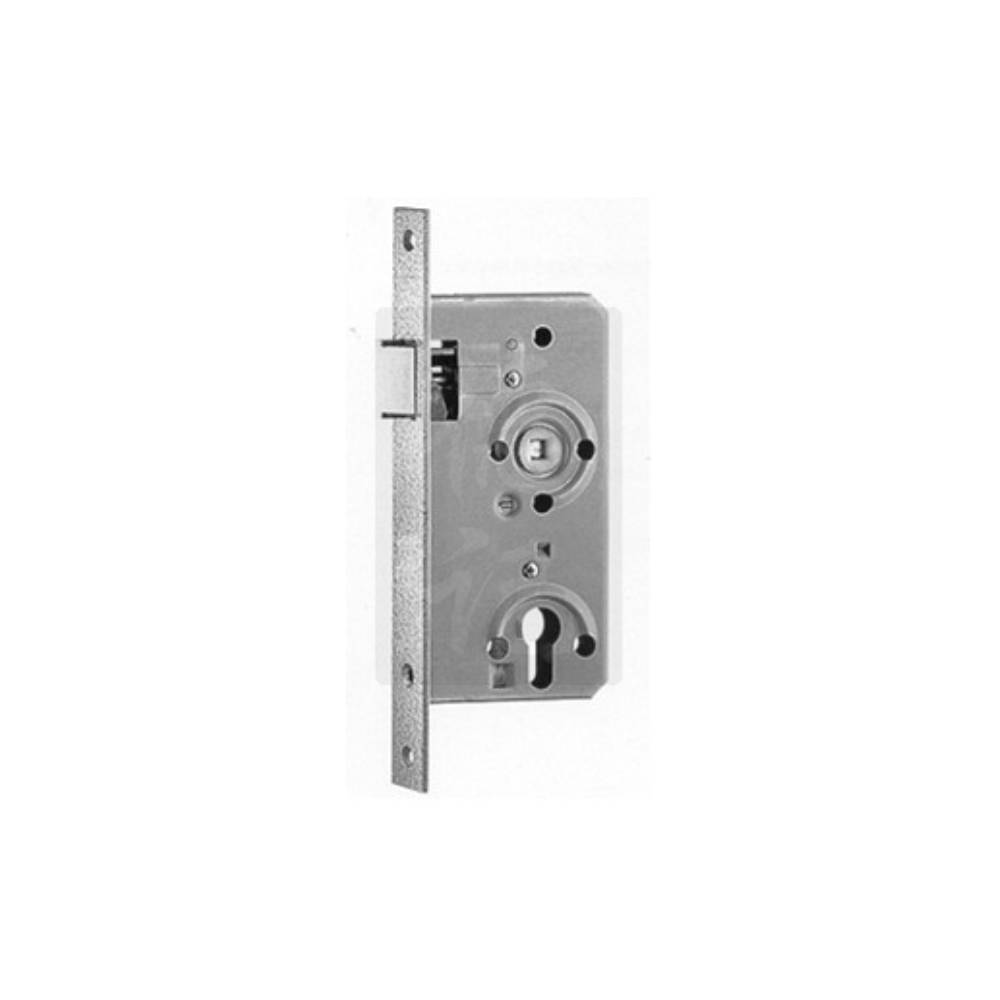

MORTISE LOCK

Technical Specification
Model	G-0706P.55 Passage Lock c/w Strike
Application	Suitable for Timber & Metal Doors installation
Operation	The latch bolt is withdrawn by lever handle from either side
Case	Enclosed lock case with Sliver Painted
Latch	Zinc Plated Reversible Latch. Lever action latchbolt
Follower	8mm, follower to suit 8mm spindle. 72mm centre as standard.
Forend	Satin Stainless Steel finish with square end, 24mm wide.
Backset	55mm as standard. 60mm and 80mm available.
Material	Stainless Steel for Forend & Strike Plate
Finishes	Satin Stainless Steel
