MORTISE LOCK

Technical Specification

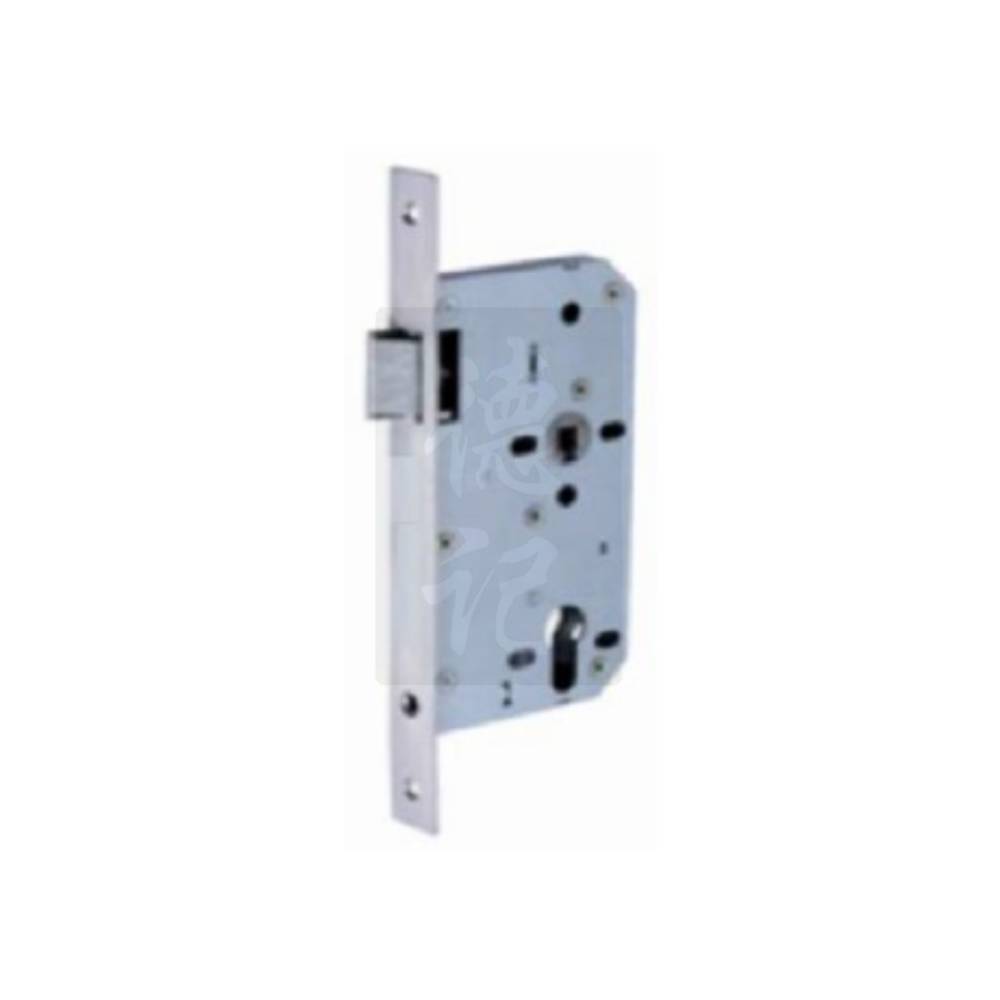

Model	A72-5572NL Nightlatch Lock c/w Strike & Box
Application	Suitable for Timber & Metal Doors installation
Operation	The latch bolt is withdrawn by lever handle from either side Self locking when door is close and unlocked by Thumbturn inside and key outside cylinder. Key from either side using double cylinder
Case	Enclosed lock case with Sliver Painted
Latch	Stainless Steel Reversible Latch. Lever action latchbolt
Follower	8mm, follower to suit 8mm spindle. 72mm centre as standard
Backset	55mm as standard.
Forend	Satin Stainless Steel finish with square end, 24mm wide. Other finishes available to order
Cylinder	For use with standard Euro Profile Cylinder
Material	Stainless Steel for Forend & Strike Plate
Finishes	Satin Stainless Steel
