MORTISE LOCK

Technical Specification

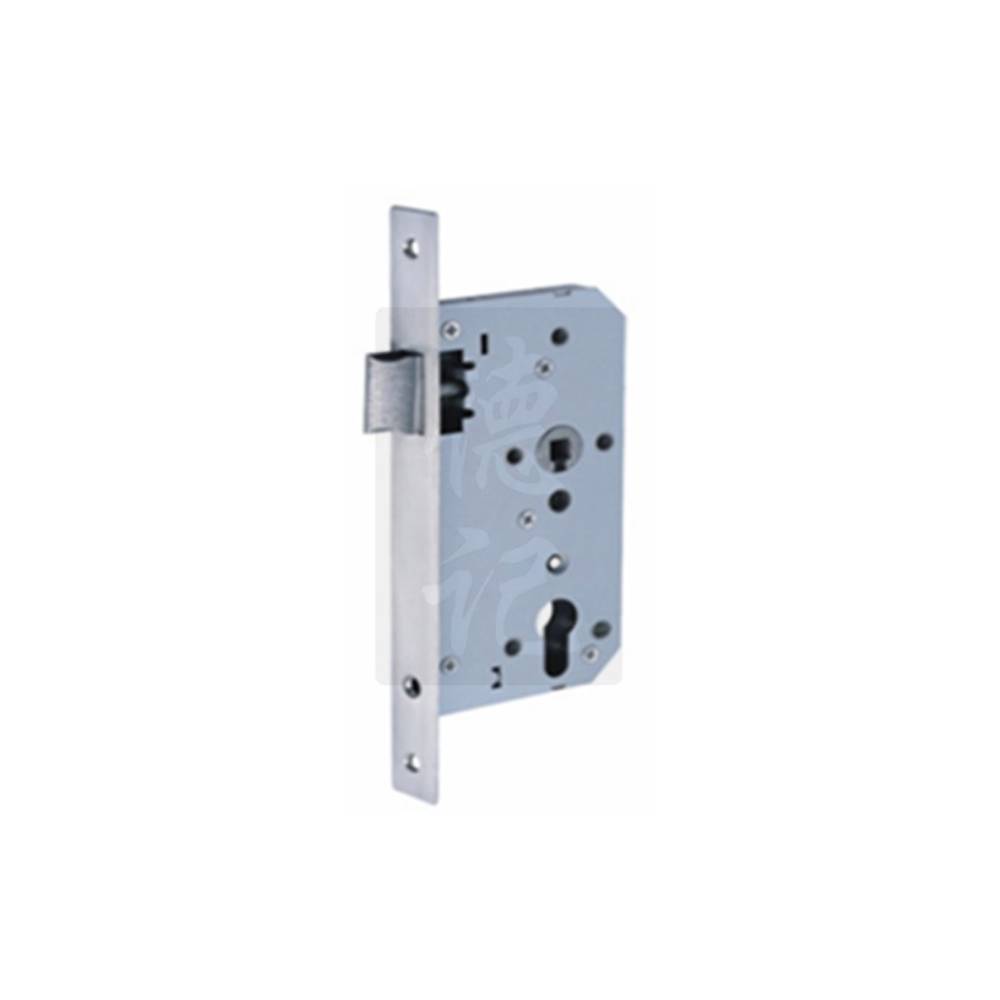

Model	A72-5572P Passage Lock c/w Strike & Box
Application	Suitable for Timber & Metal Doors installation
Operation	The latch bolt is withdrawn by lever handle from either side
Case	Enclosed lock case with Sliver Painted
Latch	Stainless Steel Reversible Latch. Lever action latchbolt
Follower	8mm, follower to suit 8mm spindle. 72mm centre as standard. 85mm available to order.
Forend	Satin Stainless Steel finish with square end, 24mm wide. Other finishes available to order
Backset	55mm as standard.
Material	Stainless Steel for Forend & Strike Plate
Finishes	Satin Stainless Steel
