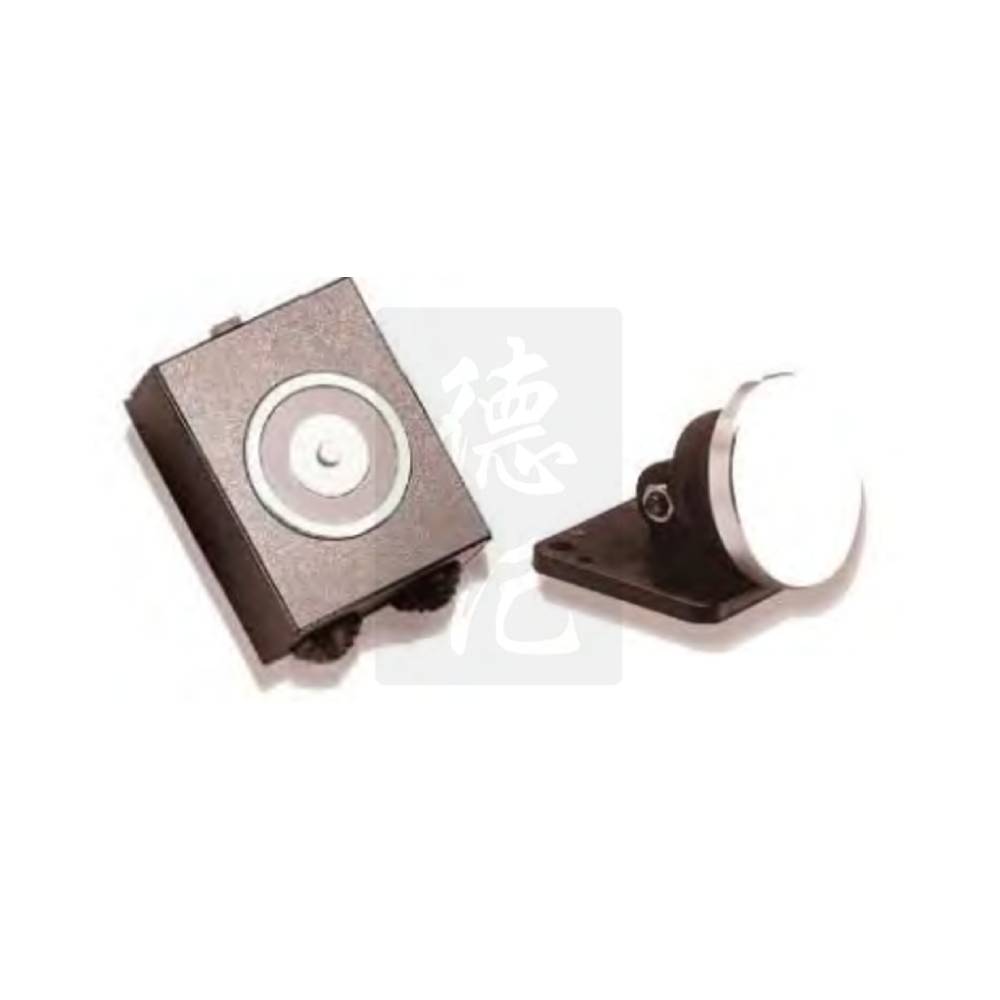

Accord DFC832 Electro – Magnetic Holder with S-AP702 Plate

Emergency Release Button / Test Button

Low Current Consumption

Reliable Fail-Safe Mechanism

Durable & Silence Operation

Cosmetic Powder Coat Casing

Compact Size for Most Type of Swing Doors

Full Range Of Optional Brackets

Anti-Residual Magnetism Kick Off Button

2.Current Draw: 12V / 100mA ; 24V / 50mA (±5%)

3.Holding Force: Up to 150 Ibs (70kg)

4.Anti-Rust Surface Treatment: Blue Zinc Plating

5.Operating Temperature: 0 ~ 55 °C (32~131°F)

6.Operating Humidity: 0~95% (noncondensing)

7.Weight: 0.7kg ((±1%)

8.Dimension: Magnet – (H)85x(W)70(T)40mm

Armature – (   )55x(T)8mm
