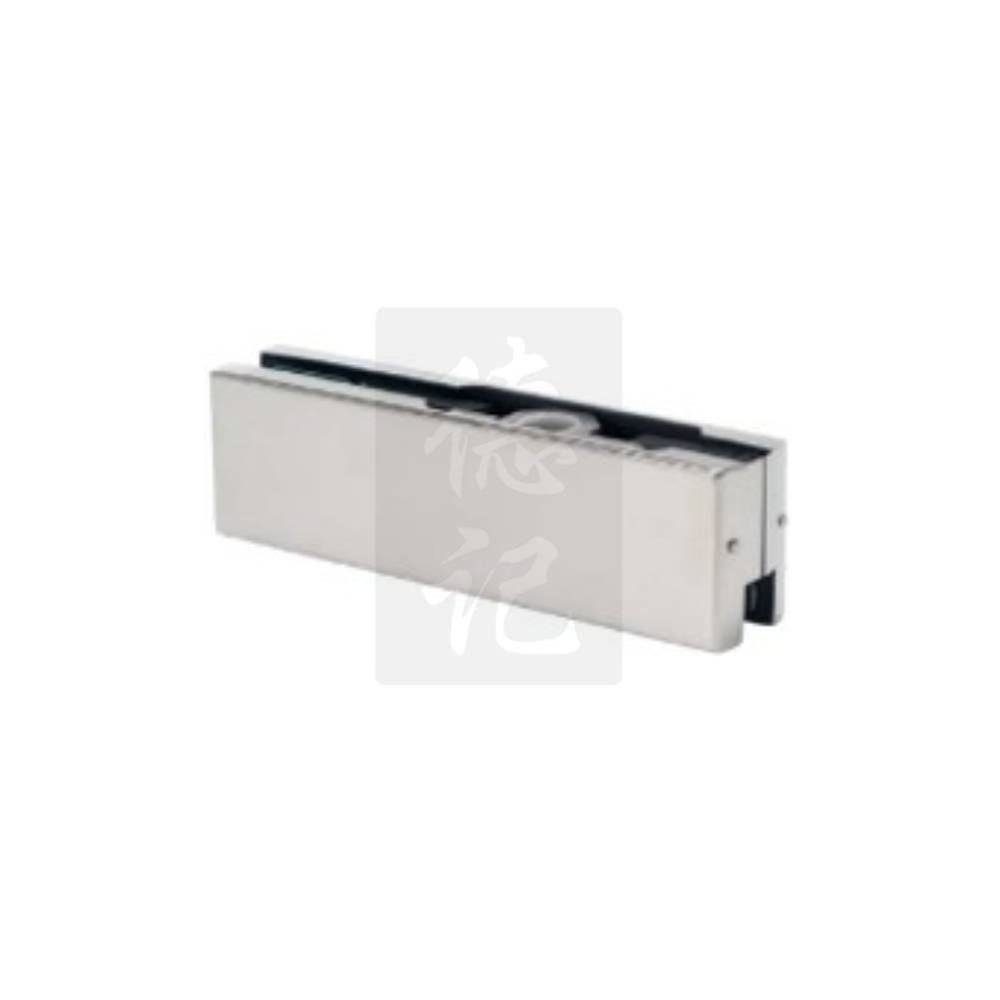

Accord PD20 Top Patch Fitting
| Technical Specification | |
| Model | PD20 Top Patch Fitting |
| Application | With its broad spectrum of basic types and variants, the ACCORD Universal range of patch fittings enables the realisation in toughened glass of almost any conceivable design. Toughened glass assemblies can be provided with fixed parts in widely differing arrangements – with corner fittings or fin fittings at different angles, and with double for single action doors in single-leaf or double-leaf designs. Easy glass preparation, secure fixing ACCORD-Glass has an intimate knowledge of the special properties of glass as a building material. This has led to the design of fittings requiring only minimal glass preparation – a quick and easy cut-out with additional holes. Carefully considered and positive measures have been taken to create the maximum clamping surface with optimum clamping efficiency. Suitable for common glass thicknesses ACCORD Universal fittings are supplied as standard with gasket to suit 10 mm glass. For 8 mm and 12 mm glass, correspondingly thicker and thinner gasket is available. Some patches are even designed to fit directly with different glass thicknesses. Variable pivot point .The inserts for corner and over panel patches in the ACCORD Universal program have been designed and manufactured to give two options in the pivot point distance from the side panel or frame. It can be either 55 mm or 65 mm. At 65 mm pivot point and the use of a special round profile (pages 17 + 67) doors can be built with a constant air gap of only 4 mm. For information regarding patch fittings ACCORD Universal with 15 mm pivot point for pinch free doors see page 22 and following pages. Reliability built in Quality materials and thorough workmanship mean that ACCORD’s Universal fittings have the features necessary to meet the most demanding of specifications. The fittings are designed to cope with large and heavy doors up to a maximum weight of 100kg: for instance, a door blade 3 m high by 1100 mm wide, using 12 mm glass is possible. For heavier and wider doors up to a maximum of 150kg and max. 1400 mm and for high frequented doors, rails with reinforced straps are available. |
