ACCORD

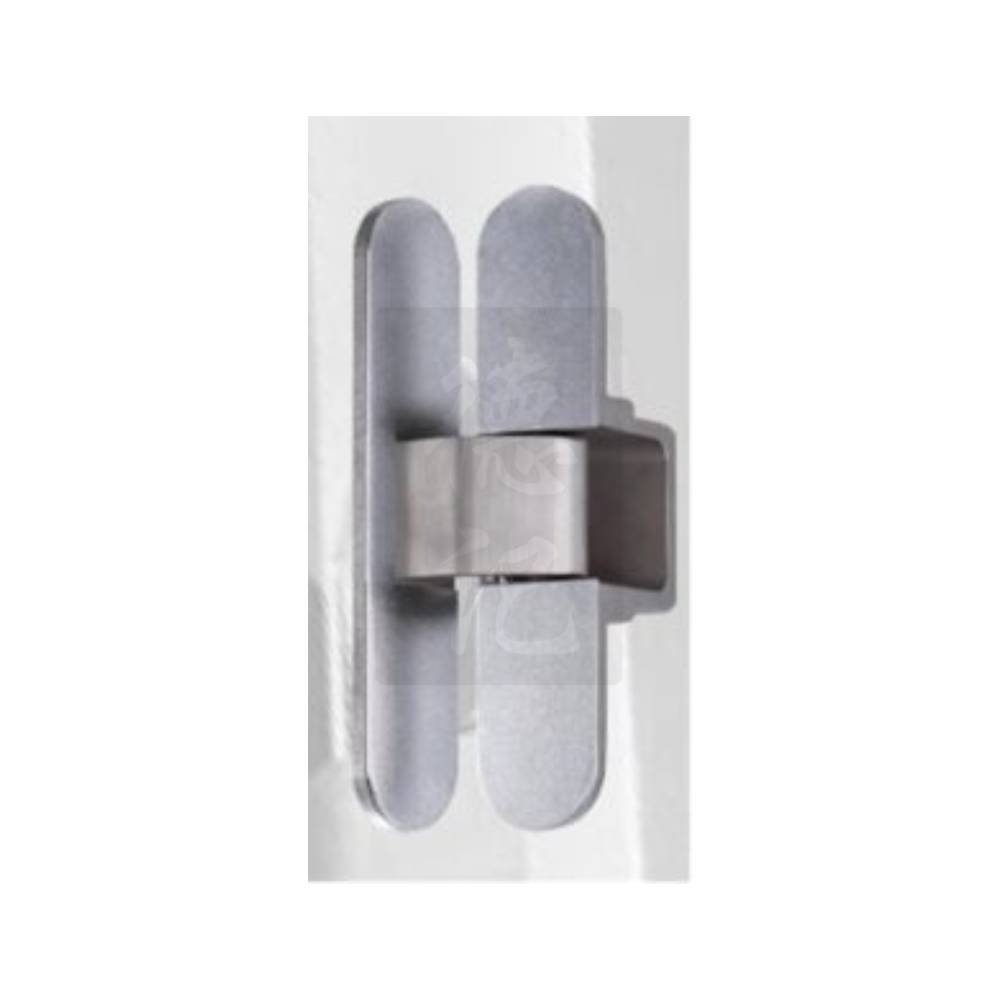

Accord V203B SS Concealed Hinge
| Technical Specification | |
| Model | V203B |
| Application | Suitable for Timber & Metal Doors installation |
| Operation | Completely concealed for unrebated doors for timber, steel and aluminum frames and doors. Load capacity of 120kg for a pair, opening angle of up to 115 degrees, right and left hand applicable. Fully invisible screw fixture concealed by hinge cover plate. |
| Load Capacity | 120kg / pair |
| Door Thickness | Minimum 40mm |
| Door Width | < 1250mm |
| Available Size | ØV205B: 80kg
ØV201B: 160kg |
| Material | Stainless Steel |
| Finishes | Satin Stainless Steel |
