ACCORD

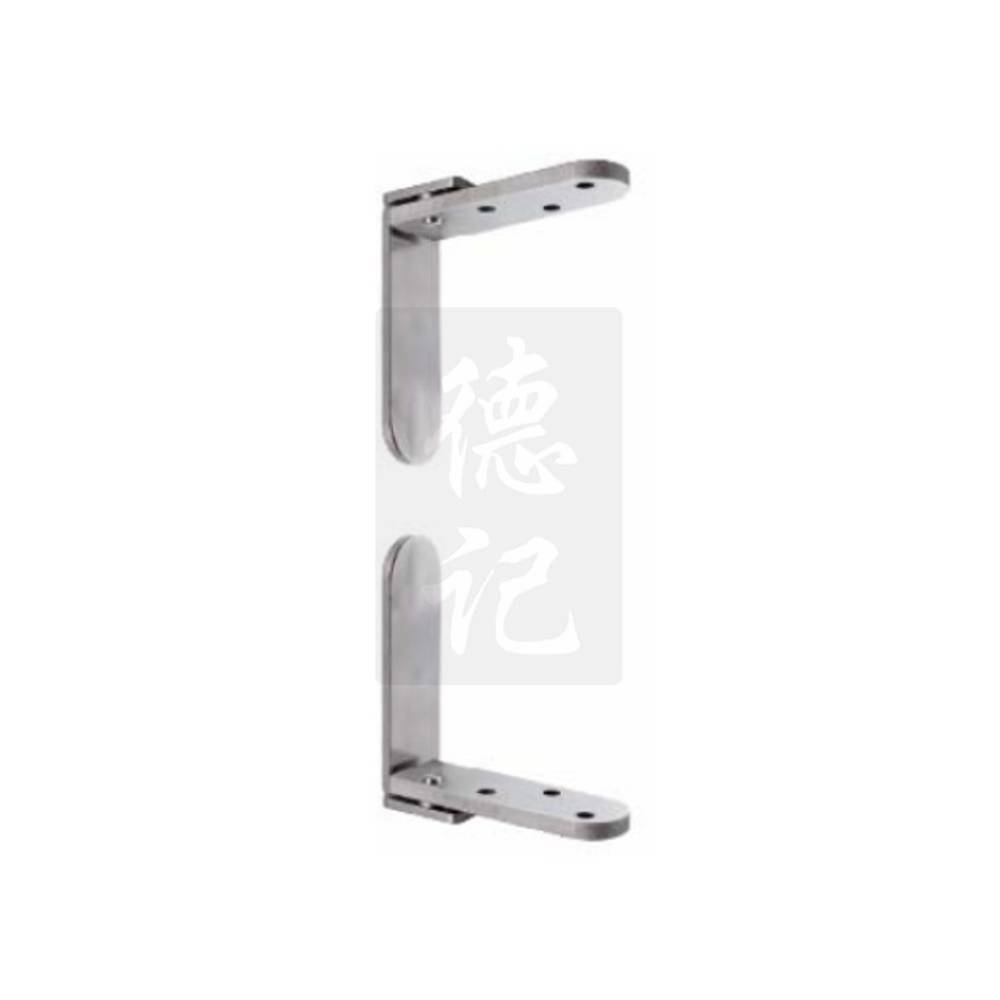

Accord W307 SS Pivot Hinges
| Technical Specification | |
| Model | W307 Top & Bottom Concealed Pivot Hinges |
| Application | Completely concealed for unrebated doors for timber, steel and aluminum frames and doors. Load capacity of 80-100kg for a pair, opening angle of up to 115 degrees, right and left hand applicable. Invisible screw fixture concealed by hinge cover plate. Side mounted. |
| Hinges Load Capacity | 80kg / pair (W307.80)
100kg / pair (W307.100) |
| Minimum Door Thickness | 38mm (W307.80)
45mm (W307.100) |
| Door Width | < 1100mm |
| Material | Stainless Steel |
| Finishes | Satin Stainless Steel |
