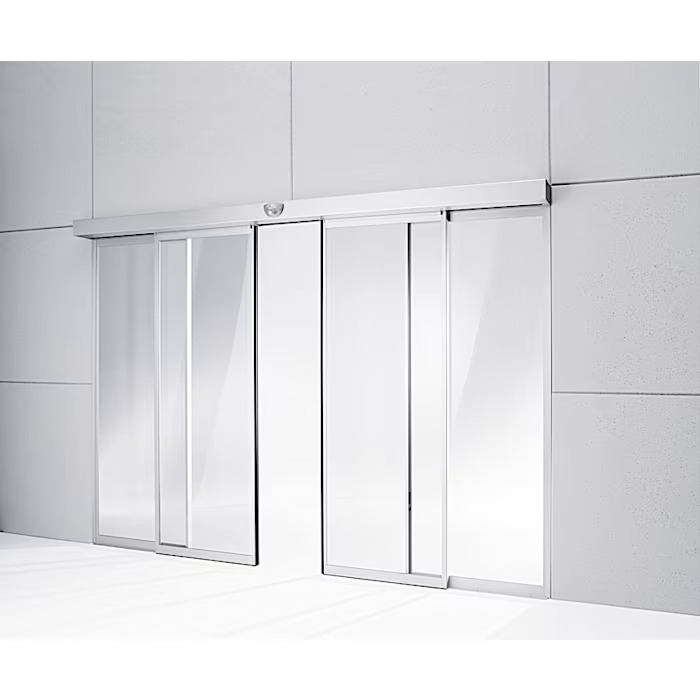

ES200 Automatic Sliding Door Operator

Product Details

Completely redesigned sliding door operator

The dormakaba ES 200 is a completely redesigned sliding door operator that corresponds to all the latest European and German standards and safety regulations. It encompasses a stylish and modern cover design, a motor that ensures a virtually silent operation, a microprocessor that automatically controls the opening and closing speeds of the door, a energy saving power unit and new programming functions allowing for quick and simple installation, set-up and maintenance.

Modular design

The ES 200 is a sliding door operator of modular design that can be tailored individually to prevailing functional requirements. The standardized mechanical components and the replaceable track rail can eb combined with different operators (consisting of drive and control unit, motor and power supply unit).

ES 200-2D – for emergency exits and escape routes

The 2D version is equipped with a redundant second motor and a control unit in redundant design. The system does not require any rubber cords or coupling units. Thanks to their functional principle, the operators are very reliable and maintenance-friendly.

Fields of application

• Single- or double-panel siding doors

• As standard version (ES 200) or with approval for application in emergency exits and escape routes (ES 200-2D)

• Double- or four-panel telescopic sliding doors

• As standard version (ES 200 T) or with approval for application in emergency exits and escape routes (ES 200 T-2D)

Technical specifications

• Opening width: 700 to 3000 mm

• Door-panel weight: 1 x 200 kg or 2 x 160 kg

Supplementary equipment/options

• Various electromechanical locking devices

• Modules with special functions

• Electronic safeguarding of secondary closing edges

Technical specifications for escape-route version ES 200-2D:

• Opening width: 900 to 3000 mm

• Door-panel weight: 1 x 150 kg or 2 x 130 kg
