DOOR CLOSER

Technical Specification

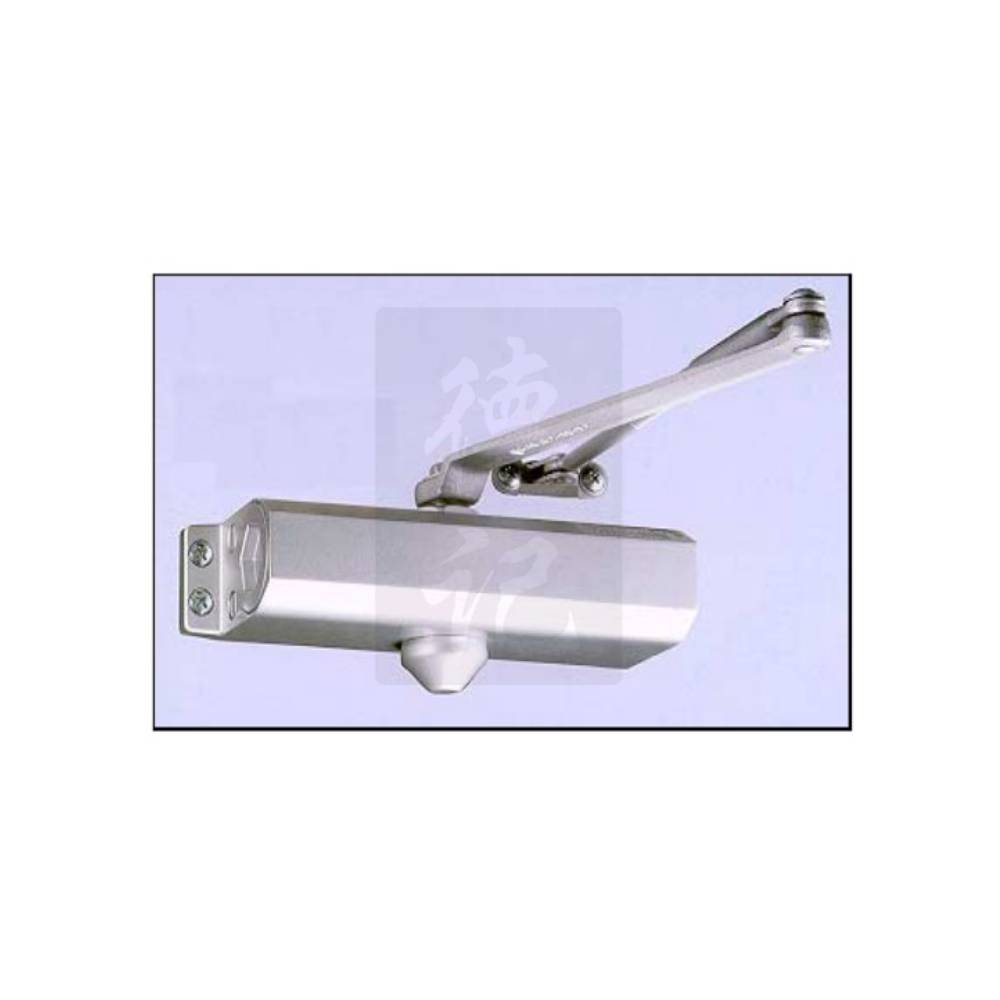

Model	80 Series EN2 / EN3 / EN4 Exposed Door Closer
Material	Closer body made of corrosion resistant cast aluminum. Internal components consists of highly efficient rack and pinion mechanism incorporating a hardened forged steel piston and a hardened steel precision made pinion.
Controls	2 independent valves providing hydraulic control from 180°- 15°of closing sweep and 15°- 0°of latching sweep. The adjusting valve has a built-in thermostat which together with the high-quality hydraulic fluid give constant closing speeds even under extreme temperature changes.
Backcheck	1 back check valve control provides a strength adjustable braking action – from about 75°, to help prevent damage to door or wall if the door is opened with undue force
Handing	Non – handed closers suitable for both clockwise or anti-clockwise opening doors
Finishes	Silver, other upon request
