DOOR CLOSER

Technical Specification

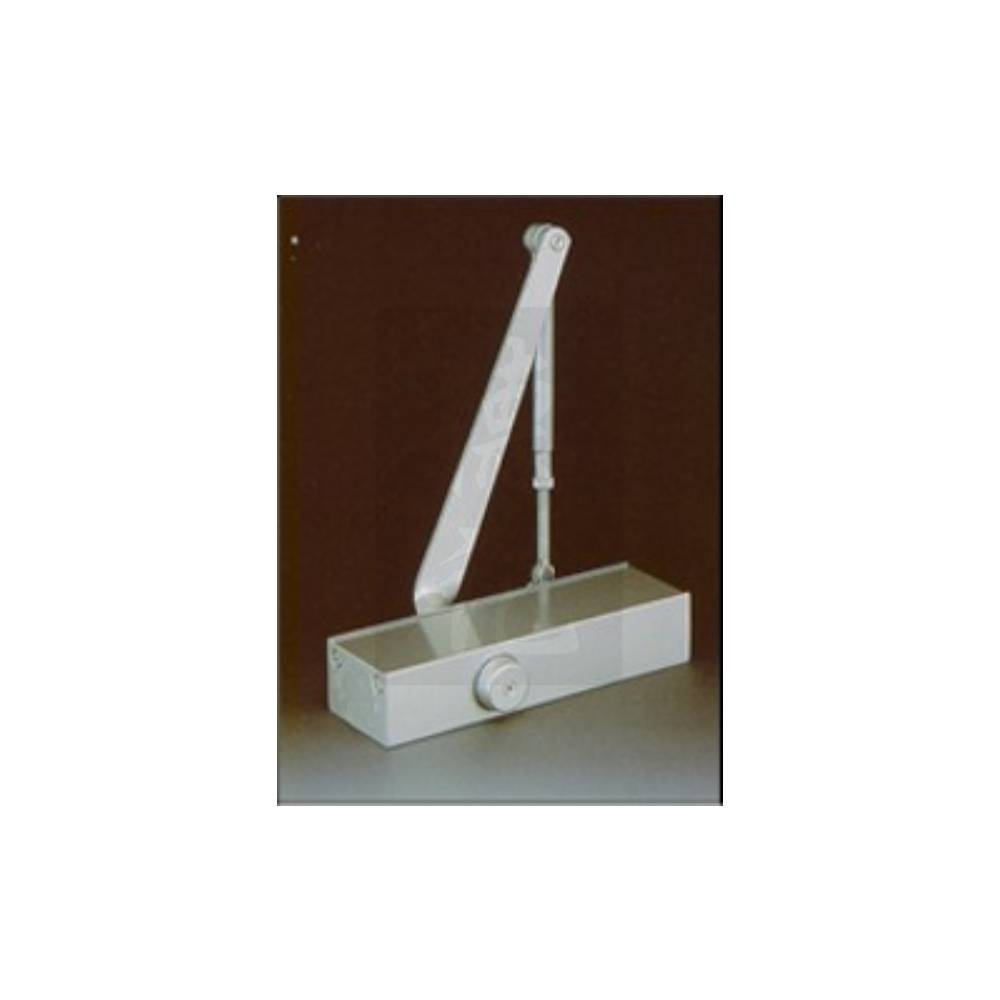

Model	93 Exposed Door Closer
Specification	Surface mounted Non handed, Needle bearing for light opening Rack & Pinion model, Heat treated pinion and piston Standard closing and latching controls: 2 independent valves providing hydraulic control from 180°- 15°of closing sweep and 15°- 0°of latching sweep
Closing Force	EN3 / EN4 achieved by closer installation position
Compliance	EN1154, EN1634 – 4 hours fire rated SS332:2018
Finish	Silver, other upon request
Optional Accessories	Parallel arm bracket Slide arm Hold open arm (Suggested for non fire rated door installation)
