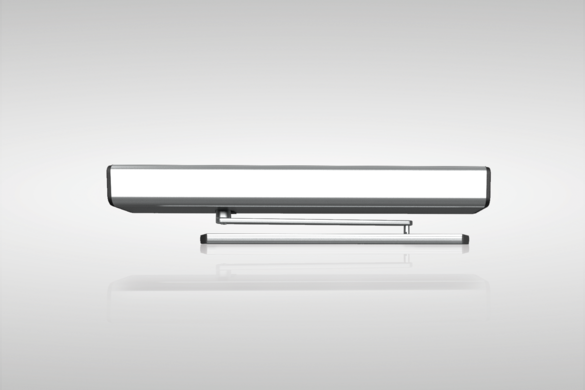

GU-DTN80 Automatic Swing Door Operator

Product Description

• Universal application
  All applications can be implemented
  using only one swing-door drive:
  – 1 and 2-leaf swing doors
  – Fire doors
  – Escape doors
  – Push-open or pull-open
• For door leaf weights up to 600 kg
• For door leaf widths up to 1600 mm
• Patented energy-store consisting of two spring
  assemblies which can be adjusted separately
• Closing force instead of latching speed
• Patented closing damping via the dynamic effect
  of the drive motor
• Door closer effect
• Servo assistance adjustable from 0°
• 24V/2.5 A power supply for external components
• High dynamics and therefore high opening speedMechanical closing sequence control for 2-leaf fireprotection doors or for doors in escape routes concealedunder the drive claddings
• Modular system reduces inventory management
• Quiet running properties make it particularly suitablefor use in noise-sensitive areas, such as offices or hospitalsConvenient adjustment options directly at the drive viathe rotary knob/push-button with integrated display underthe drive cladding
• Assembly friendly: retaining pins on the camshaft makespring-biased assembly easier
• Elegant and stable design of scissor-action arm and slide arm
• Tested quality

– Type-tested by TÜV and certified to EN 16005– Tested by VdS and material testing office in Germany in accordance with DIN 18263-4 / EN 1158
– Design approval by German Institute of Building Engineering(application filed)s
